HCS11MS

Radiation Hardened Triple 3-Input AND Gate

HCS11MS Features

* 3 Micron Radiation Hardened SOS CMOS

* Total Dose 200K or 1 Mega-RAD(Si)

* Dose Rate Upset >1010 RAD(Si)/s 20ns Pulse

* Cosmic Ray Upset Immunity < 2 x 10-9 Errors/Gate Day (Typ)

* Latch-Up Free Under Any Conditions

* Military Temperature Range: -55o

HCS11MS General Description

The Intersil HCS11MS is a Radiation Hardened Triple 3Input AND Gate. A high on all inputs forces the output to a High state. The HCS11MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family. The HCS11M.

HCS11MS Datasheet (305.33 KB)

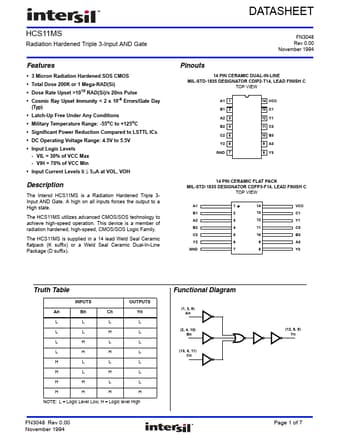

Preview of HCS11MS PDF

Datasheet Details

Part number:

HCS11MS

Manufacturer:

Intersil

File Size:

305.33 KB

Description:

Radiation hardened triple 3-input and gate.
