HCS125MS

Radiation Hardened Quad Buffer

HCS125MS Features

* 3 Micron Radiation Hardened SOS CMOS Total Dose 200K RAD (Si) SEP Effective LET No Upsets: >100 MEV-cm2/mg Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ) Dose Rate Surviva

HCS125MS General Description

The Intersil HCS125MS is a Radiation Hardened quad three-state buffer, each having its own output enable input. A high level on the enable input puts the output in a high impedance state. The HCS125MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of r.

HCS125MS Datasheet (93.82 KB)

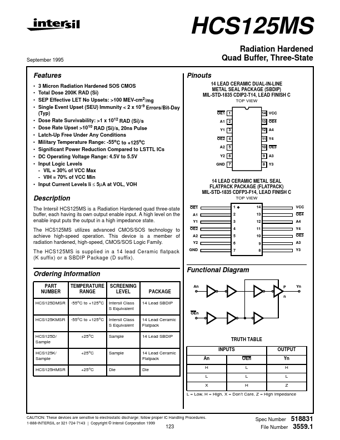

Preview of HCS125MS PDF

Datasheet Details

Part number:

HCS125MS

Manufacturer:

Intersil Corporation

File Size:

93.82 KB

Description:

Radiation hardened quad buffer.
HCS125MS September 1995 Radiation Hardened Quad Buffer, Three-State Pinouts 14 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE (SBDIP) MIL-STD-1835 CDIP.
