HCS02MS

Radiation Hardened Quad 2-Input NOR Gate

HCS02MS Features

* 3 Micron Radiation Hardened SOS CMOS

* Total Dose 200K RAD(Si)

* SEP Effective LET No Upsets: >100 MEV-cm2/mg

* Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)

* Dose Rate Survivability: >1 x 1012 Rads (Si)/s

* Dose Rate Upset >1010

HCS02MS General Description

The Intersil HCS02MS is a Radiation Hardened Quad 2-Input NOR Gate. A low on both inputs forces the output to a High state. The HCS02MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family. The HCS02MS.

HCS02MS Datasheet (144.76 KB)

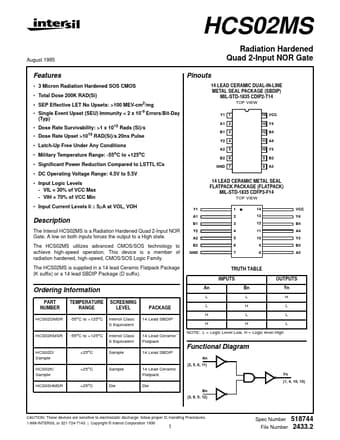

Preview of HCS02MS PDF

Datasheet Details

Part number:

HCS02MS

Manufacturer:

Intersil Corporation

File Size:

144.76 KB

Description:

Radiation hardened quad 2-input nor gate.
HCS02MS August 1995 Radiation Hardened Quad 2-Input NOR Gate Pinouts 14 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE (SBDIP) MIL-STD-1835 CDIP2-T14 T.
