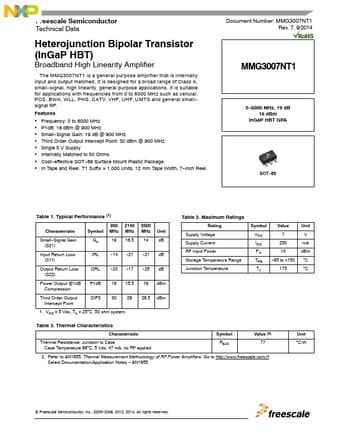

MMG3007NT1 Datasheet - Freescale Semiconductor

MMG3007NT1 Heterojunction Bipolar Transistor

Pin Number Pin Function 1 RFin 2 Ground 3 RFout/DC Supply 2 123 Figure 1. Functional Diagram Table 6. ESD Protection Characteristics Test Methodology Human Body Model (per JESD 22 *A114) Machine Model (per EIA/JESD 22 *A115) Charge Device Model (per JESD 22 *C101) Tabl.

MMG3007NT1 Features

* Frequency: 0 to 6000 MHz

* P1dB: 16 dBm @ 900 MHz

* Small

* Signal Gain: 19 dB @ 900 MHz

* Third Order Output Intercept Point: 30 dBm @ 900 MHz

* Single 5 V Supply

* Internally Matched to 50 Ohms

* Cost

* effective SOT

* 89 Surface Mount Plastic Packag
