MPX2050 50 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors

Pressure Freescale Semiconductor MPX2050 Rev 9, 10/2008 + 50 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors The MPX2050 series devices are silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output, directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calib.

MPX2050 Features

* Temperature Compensated Over 0°C to +85°C

* Unique Silicon Shear Stress Strain Gauge

* Easy to Use Chip Carrier Package Options

* Ratiometric to Supply Voltage

* Differential and Gauge Options

* ±0.25% Linearity MPX2050 Series 0 to 50 kPa (0 to 7.25

MPX2050 Datasheet (120.29 KB)

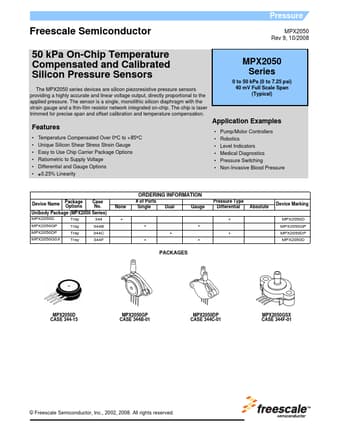

MPX2050 Datasheet Preview — Preview of MPX2050 PDF

Datasheet Details

Part number:

MPX2050

Manufacturer:

Freescale Semiconductor

File Size:

120.29 KB

Description:

50 kpa on-chip temperature compensated and calibrated silicon pressure sensors.
