AOD240 Datasheet - Freescale

N-Channel MOSFET

AOD240 Features

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 40V 70A < 3mΩ < 3.9mΩ D G S Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol Parameter VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain Current G Pulsed Drain Current C Continuous Drain Current Avalanc

AOD240 General Description

The AOD240 uses Trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance. Power losses are minimized due to an extremely low combination of RDS(ON) and Crss.In addition, switching behavior is well controlled with a “Schottky style” soft r.

AOD240 Datasheet (509.71 KB)

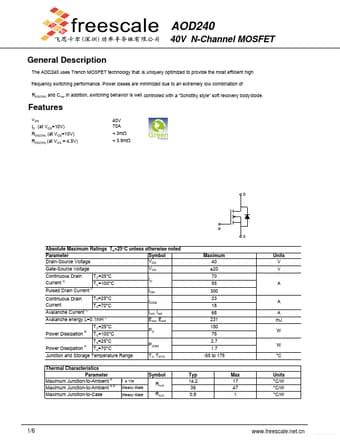

Preview of AOD240 PDF

Datasheet Details

Part number:

AOD240

Manufacturer:

Freescale

File Size:

509.71 KB

Description:

N-channel mosfet.
