AOD242 - N-Channel MOSFET

AOD242 Description

AOD242 40V N-Channel MOSFET General .
The AOD242 uses trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance.

AOD242 Features

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 40V 54A < 5.8mΩ < 8.2mΩ D G S Absolute Maximum Ratings TA=25° C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage Gate-Source Voltage Continuous Drain Current G Pulsed Drain Current Continuous Drain Current Avalanche Cu

📥 Download Datasheet

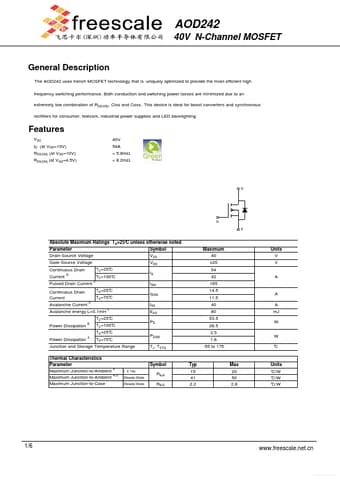

Preview of AOD242 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AOD242
Manufacturer
Freescale
File Size
359.17 KB
Datasheet
AOD242_Freescale.pdf
Description
N-Channel MOSFET
