2SK3512-SJ - N-Channel MOSFET

2SK3512-SJ Description

2SK3512-01L,S,SJ FUJI POWER MOSFET N-CHANNEL SILICON POWER MOSFET Outline Drawings Super FAP-G Series .

2SK3512-SJ Applications

* Switching regulators UPS (Uninterruptible Power Supply) DC-DC converters Maximum ratings and characteristicAbsolute maximum ratings (Tc=25°C unless otherwise specified) Symbol Ratings Unit V V DS 500 A ID ±12 A ID(puls] ±48 V VGS ±30 A IAR
* 2 12 mJ EAS
* 1 217 kV/µs dVDS/dt
* 4 20 dV/dt

📥 Download Datasheet

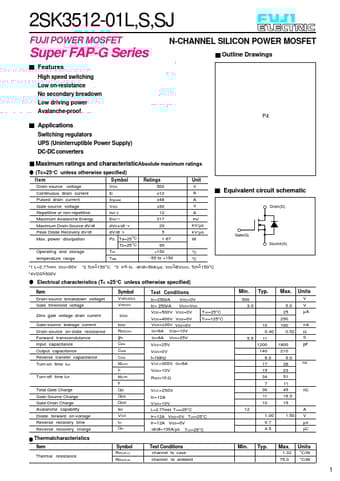

Preview of 2SK3512-SJ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3512-SJ
Manufacturer
Fuji Electric
File Size
124.87 KB
Datasheet
2SK3512-SJ_FujiElectric.pdf
Description
N-Channel MOSFET
