2SK3510 - N-Channel Power MOSFET

Product Overview

Renesas

📥 Download Datasheet

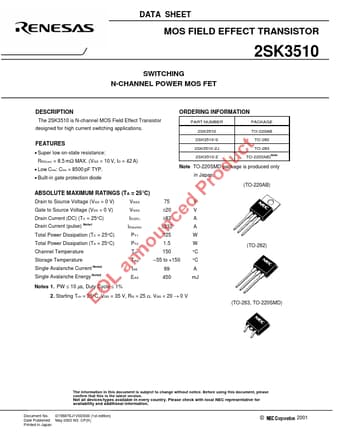

2SK3510 N-Channel Power MOSFET by Renesas - Datasheet Preview — Datasheet preview – 2SK3510

Datasheet Details

Part number	2SK3510
Manufacturer	Renesas
File Size	149.62 KB
Description	N-Channel Power MOSFET
Datasheet	2SK3510 Datasheet
Additional preview pages of the 2SK3510 datasheet.

Product details

Description

The 2SK3510 is N-channel MOS Field Effect Transistor designed for high current switching applications.ORDERING INFORMATION PART NUMBER PACKAGE 2SK3510 TO-220AB

Features

Super low on-state resistance: RDS(on) = 8.5 mΩ MAX. (VGS = 10 V, ID = 42 A).
Low Ciss: Ciss = 8500 pF TYP.
Built-in gate protection diode 2SK3510-S TO-262 2SK3510-ZJ 2SK3510-Z TO-263 TO-220SMDNote Note TO-220SMD package is produced only in Japan. (TO-220AB).
