FMM5057VF - 7.1-8.5GHz Power Amplifier MMIC

Datasheet Summary

Description

The FMM5057VF is a MMIC amplifier that contains a four-stage amplifier, internally matched, for standard communications band in the 7.1 to 8.5GHz frequency range.

Fujitsu’s stringent Quality Assurance Program assures the highest reliability and consistent performance.

Features

High Output Power: 34.0dBm(typ. ) High Linear Gain: 26.0dB(typ. ) Low VSWR Broad Band: 7.1～8.5GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package(VF).

Fuji Electric

📥 Download Datasheet

Datasheet Details

Part number	FMM5057VF
Manufacturer	Fuji Electric
File Size	300.33 KB
Description	7.1-8.5GHz Power Amplifier MMIC
Datasheet	FMM5057VF Datasheet

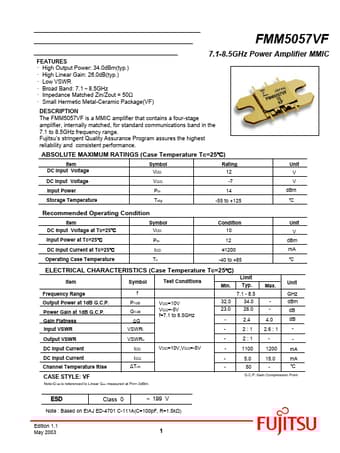

Additional preview pages of the FMM5057VF datasheet.

📁 Similar Datasheet

FMM5057X - Power Amplifier MMIC (Eudyna Devices)
FMM5051VF - 13.75-14.5GHz Power Amplifier MMIC (Eudyna Devices)
FMM5051VU - Power Amplifier MMIC (Eudyna Devices)
FMM5052ZE - Power Amplifier MMIC (Eudyna Devices)
FMM5054VF - Power Amplifier MMIC (Eudyna Devices)
FMM5056VF - Power Amplifier MMIC (Eudyna Devices)
FMM5059VF - Ku Band Power Amplifier MMIC (Eudyna Devices)
FMM5059VU - Ku-Band Power Amplifier MMIC (Eudyna Devices)
FMM50-025TF - Power MOSFET (IXYS)
FMM5017VF - GaAs MMIC (Fujitsu Media Devices)

Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

FMM5057VF 7.1-8.5GHz Power Amplifier MMIC FEATURES High Output Power: 34.0dBm(typ.) High Linear Gain: 26.0dB(typ.) Low VSWR Broad Band: 7.1～8.5GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package(VF) DESCRIPTION The FMM5057VF is a MMIC amplifier that contains a four-stage amplifier, internally matched, for standard communications band in the 7.1 to 8.5GHz frequency range. Fujitsu’s stringent Quality Assurance Program assures the highest reliability and consistent performance.
