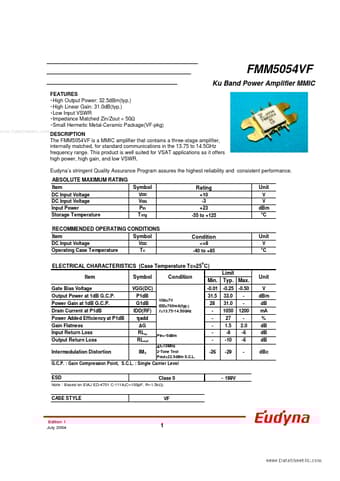

FMM5054VF Datasheet, Mmic, Eudyna Devices

FMM5054VF Features

• Mmic High Output Power: 32.5dBm(typ.) High Linear Gain: 31.0dB(typ.) Low Input VSWR Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package(VF-pkg) www.DataSheet4U.com Device

PDF File Details

Part number:

FMM5054VF

Manufacturer:

Eudyna Devices

File Size:

255.09kb

Download:

📄 Datasheet

Description:

Power amplifier mmic. The FMM5054VF is a MMIC amplifier that contains a three-stage amplifier, internally matched, for standard communications in the 13.75

FMM5054VF Application

• Applications as it offers high power, high gain, and low VSWR. Eudyna’s stringent Quality Assurance Program assures the highest reliability and con
