FMM5052ZE Datasheet - Eudyna Devices

Power Amplifier MMIC

FMM5052ZE Features

* Wide Frequency Band: 0.8 to 2.7GHz

* Medium Power: P1dB=26dBm (Typ.) @ f=0.8 - 2.7GHz

* High Linear Gain: GL=19dB (Typ.) @ f=0.8 - 2.7GHz

* Impedance Matched Zin/Zout = 50Ω

* Wide Operating Temperature Range

* Small Size: SSOP-16 Plastic Package for

FMM5052ZE General Description

The FMM5052ZE is a MMIC power amplifier that includes a three-stage amplifier, internally matched, for broadband applications in the 0.8 to 2.7GHz frequency range. This product is uniquely suited for www.DataSheet4U.com use in cellular, W-CDMA/PCS, MMDS, and WLL base station amplifiers as it offers .

FMM5052ZE Datasheet (303.78 KB)

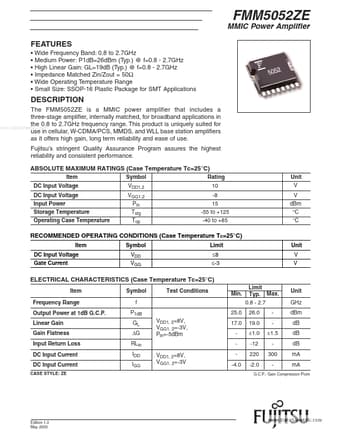

FMM5052ZE Datasheet Preview — Preview of FMM5052ZE PDF

Datasheet Details

Part number:

FMM5052ZE

Manufacturer:

Eudyna Devices

File Size:

303.78 KB

Description:

Power amplifier mmic.
