FMM5056VF Datasheet, Mmic, Eudyna Devices

FMM5056VF Features

  • Mmic High Output Power: 34.0dBm(typ.) High Linear Gain: 28.0dB(typ.) Low VSWR Broad Band: 5.8~7.2GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package(VF) DESCRIPTION The

PDF File Details

Part number:

FMM5056VF

Manufacturer:

Eudyna Devices

File Size:

352.86kb

Download:

📄 Datasheet

Description:

Power amplifier mmic. The FMM5056VF is a MMIC amplifier that contains a four-stage amplifier, internally matched, for standard communications band in the 5

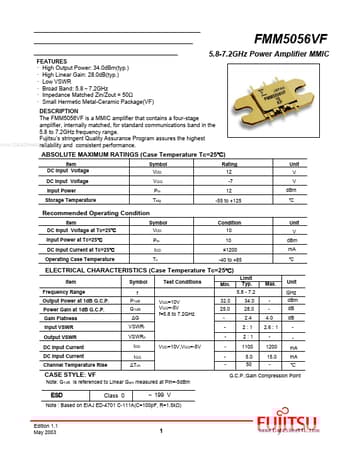

Datasheet Preview: FMM5056VF 📥 Download PDF (352.86kb)
Page 2 of FMM5056VF Page 3 of FMM5056VF
