FMM5057X - Power Amplifier MMIC

FMM5057X Description

FMM5057X C-Band Power Amplifier MMIC .
The FMM5057X is a power amplifier MMIC that contains a four stage amplifier, internally matched, for standard communications band in 7.

FMM5057X Features

* High Output Power; P1dB = 34 dBm (Typ. )
* High Linear Gain; GL = 27 dB(Typ. )
* Frequency Band ; 7.1 - 8.5 GHz
* High Linearity ; OIP3 = 42.5 dBm(typ. )

FMM5057X Applications

* Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. ABSOLUTE MAXIMUM RATING Item Drain-Source Voltage Gate-Source Voltage Input Power Strage Temperature Symbol VDD VGG Pin Tstg Rating 12 -3 14 　-55 to +125 Unit V V dBm ℃ RECOMMENDED OPERATIN

📥 Download Datasheet

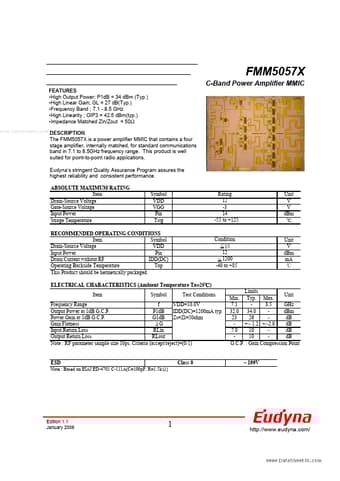

Preview of FMM5057X PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FMM5057X
Manufacturer
Eudyna Devices
File Size
661.57 KB
Datasheet
FMM5057X_EudynaDevices.pdf
Description
Power Amplifier MMIC
