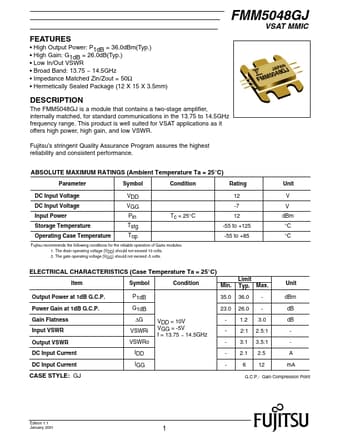

FMM5048GJ Datasheet, Mmic, Fujitsu Media Devices

FMM5048GJ Features

• Mmic
• High Output Power: P1dB = 36.0dBm(Typ.) High Gain: G1dB = 26.0dB(Typ.) Low In/Out VSWR Broad Band: 13.75 ~ 14.5GHz Impedance

PDF File Details

Part number:

FMM5048GJ

Manufacturer:

Fujitsu Media Devices

File Size:

109.87kb

Download:

📄 Datasheet

Description:

Vsat mmic. The FMM5048GJ is a module that contains a two-stage amplifier, internally matched, for standard communications in the 13.75 to 14.5GH

FMM5048GJ Application

• Applications as it offers high power, high gain, and low VSWR. Fujitsu’s stringent Quality Assurance Program assures the highest reliability and con
