FA5604N - General PWM

Fuji

FA5604N Datasheet Preview — Preview of FA5604N PDF

Datasheet Details

Part number	FA5604N
Manufacturer	Fuji ↗
File Size	1.49 MB
Description	General PWM
Datasheet	FA5604N-Fuji.pdf

FA5604N Product details

Description

of pins Pin No.Pin name Pin Function 1 RT Oscillator timing resister 2 FB Feedback 3 IS Overcurrent detection 4 GND Ground 5 OUT Output 6 VCC Power supply 7 VF Switching Frequency Control at over load 8 CS Soft-start and ON/OFF control Notes) 1 Connect the capacitor. 2 Connect the resistor. 1, 2 1 1, 2 － 2 1, 2 1, 2 1 CS VF VCC OUT 8 7 6 5 1 2 3 4 RT FB IS GND Sep,2016 DS-033E Rev3.0 2 /30

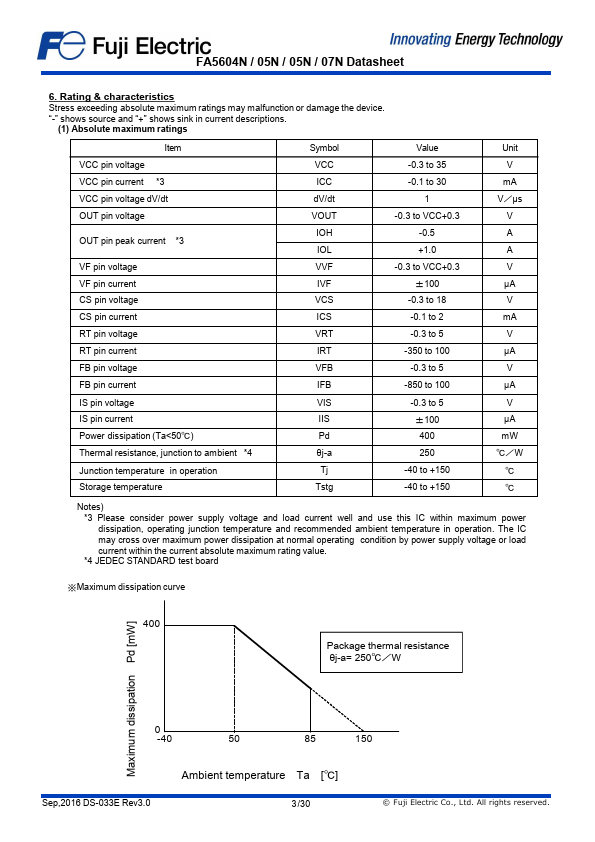

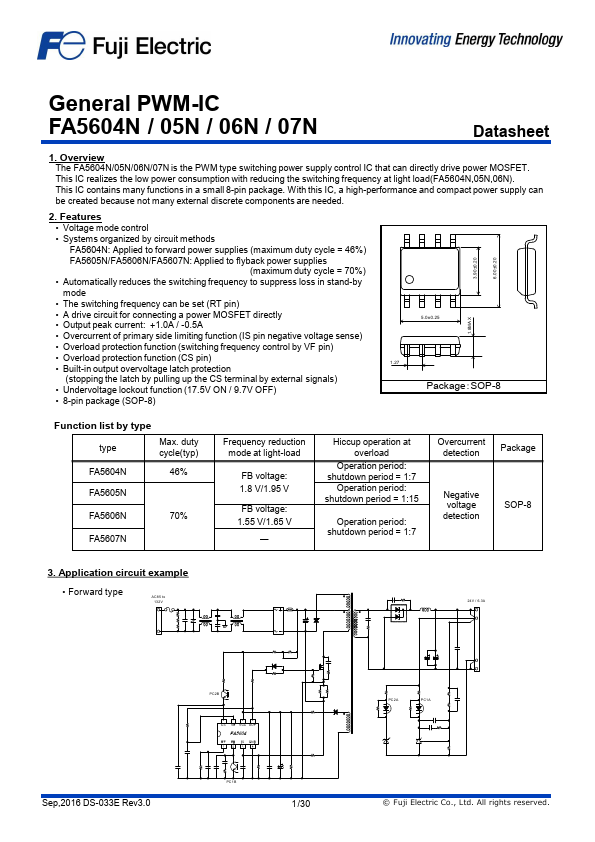

Features

Voltage mode control.
Systems organized by circuit methods FA5604N: Applied to forward power supplies (maximum duty cycle = 46%) FA5605N/FA5606N/FA5607N: Applied to flyback power supplies (maximum duty cycle = 70%).
Automatically reduces the switching frequency to suppress loss in stand-by mode.
The switching frequency can be set (RT pin).
A drive circuit for connecting a power MOSFET directly.
Output peak current: +1.0A / -0.5A.
Ov.
