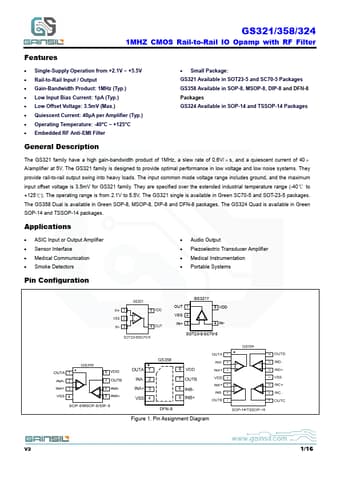

GS358 Datasheet, Opamp, GAINSIL

GS358 Features

• Opamp
• Single-Supply Operation from +2.1V ~ +5.5V
• Rail-to-Rail Input / Output
• Gain-Bandwidth Product: 1MHz (Typ.)
• Low Input Bias Current: 1pA (Typ.)

PDF File Details

Part number:

GS358

Manufacturer:

GAINSIL

File Size:

694.50kb

Download:

📄 Datasheet

Description:

1mhz cmos rail-to-rail io opamp. μ μ The GS321 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/ s, and a quiescent current of 40 A/amplifier at

GS358 Application

• Applications
• ASIC Input or Output Amplifier
• Sensor Interface
• Medical Communication
• Smoke Detectors
