GS358B, GS321B - 1MHZ CMOS Rail-to-Rail I/O Opamp

📥 Download Datasheet

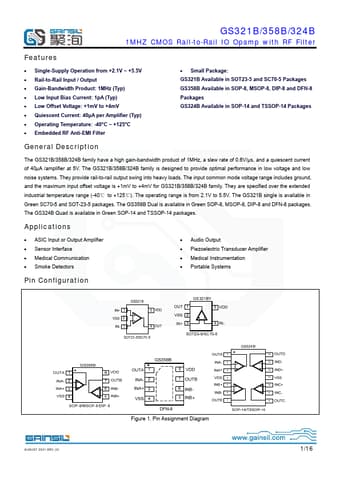

GS358B Datasheet Preview — This datasheet PDF includes multiple part numbers: GS358B, GS321B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: GS358B, GS321B
Manufacturer: GAINSIL
File Size: 821.90 KB
Datasheet: GS321B-GAINSIL.pdf
Description: 1MHZ CMOS Rail-to-Rail I/O Opamp
Note: This datasheet PDF includes multiple part numbers: GS358B, GS321B.
Please refer to the document for exact specifications by model.

GS358B Product details

Description

Small Package: GS321B Available in SOT23-5 and SC70-5 Packages GS358B Available in SOP-8, MSOP-8, DIP-8 and DFN-8 Packages GS324B Available in SOP-14 and.

Features

Single-Supply Operation from +2.1V ~ +5.5V.
Rail-to-Rail Input / Output.
Gain-Bandwidth Product: 1MHz (Typ).
Low Input Bias Current: 1pA (Typ).
Low Offset Voltage: +1mV to +4mV.
Quiescent Current: 40μA per Amplifier (Typ).
Operating Temperature: -40°C ~ +125°C.
Embedded RF Anti-EMI Filter General.
