GS9020A

Serial Digital Video Input Processor

GS9020A Features

* fully compatible with SMPTE 259M

* drop-in replacement for the GS9020

* auto-standard operation to 540MHz

* embedded EDH and data processing core

* selectable loop through or re-serialized EDH-processed serial output

* noise immune HVF timing signal

GS9020A General Description

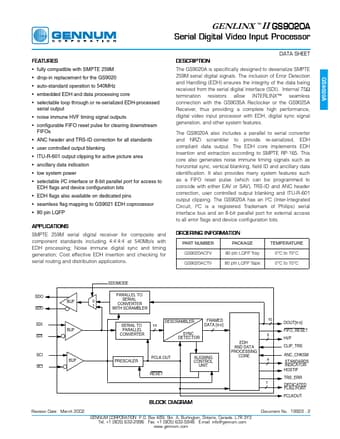

DATA SHEET The GS9020A is specifically designed to deserialize SMPTE 259M serial digital signals. The inclusion of Error Detection and Handling (EDH) ensures the integrity of the data being received from the serial digital interface (SDI). Internal 75Ω termination resistors allow INTERLINX™ seamle.

GS9020A Datasheet (270.67 KB)

Preview of GS9020A PDF

Datasheet Details

Part number:

GS9020A

Manufacturer:

GENNUM

File Size:

270.67 KB

Description:

Serial digital video input processor.
