GS9024 Datasheet, Equalizer, Gennum

GS9024 Features

  • Equalizer
  • automatic cable equalization
  • fully compatible with SMPTE 259M
  • typically equalizes greater than 350m of high quality cable at 270Mb/s
  • signal stren

PDF File Details

Part number:

GS9024

Manufacturer:

Gennum

File Size:

214.63kb

Download:

📄 Datasheet

Description:

Automatic cable equalizer. The GS9024 is a high performance automatic cable equalizer designed for serial digital data rates from 143Mb/s to 540Mb/s. The GS9024

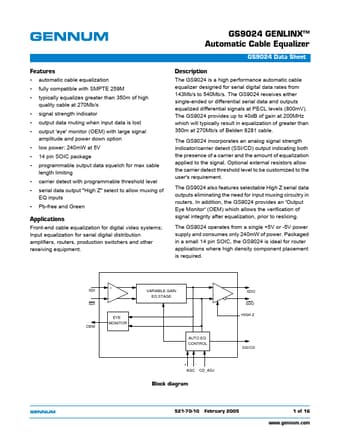

Datasheet Preview: GS9024 📥 Download PDF (214.63kb)
Page 2 of GS9024 Page 3 of GS9024

GS9024 Application

  • Applications Front-end cable equalization for digital video systems; Input equalization for serial digital distribution amplifiers, routers, product
