GS9028 Datasheet, Driver, Gennum

GS9028 Features

  • Driver
  • SMPTE 259M compliant
  • Two complementary outputs, adjustable from 50 to 1000mVp-p into 75Ω loads
  • Operational from DC to 622Mb/s
  • Nominal 470ps rise

PDF File Details

Part number:

GS9028

Manufacturer:

Gennum

File Size:

815.55kb

Download:

📄 Datasheet

Description:

Cable driver. The GS9028 is a second generation bipolar integrated circuit designed to drive two 75Ω co-axial cables. The GS9028 features two compl

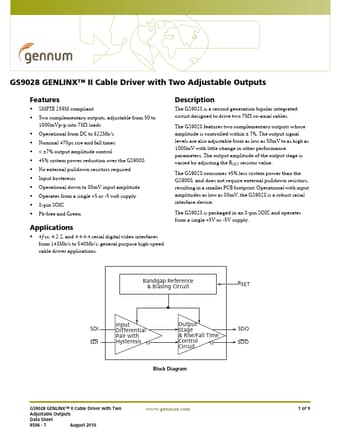

Datasheet Preview: GS9028 📥 Download PDF (815.55kb)
Page 2 of GS9028 Page 3 of GS9028

GS9028 Application

  • Applications
  • 4ƒsc, 4:2:2, and 4:4:4:4 serial digital video interfaces from 143Mb/s to 540Mb/s; general purpose high-speed cable driver app
