2SA1797 - PNP Transistor

2SA1797 Description

Production specification PNP Silicon Epitaxial Planar Transistor .

2SA1797 Features

* Low saturation voltage VCE(sat)=-0.35V(Max. ) (IC/IB=-1A/-0.5A).
* Excellent DC current gain characteristics.
* Complements the 2SA1797 and 2SC4672.

2SA1797 Applications

* Low frequency transistor. Pb Lead-free ORDERING INFORMATION Type No. Marking 2SA1797 AGP/AGQ 2SA1797 SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -50 VCEO Collector-Emitter Voltage -50 VEBO IC

📥 Download Datasheet

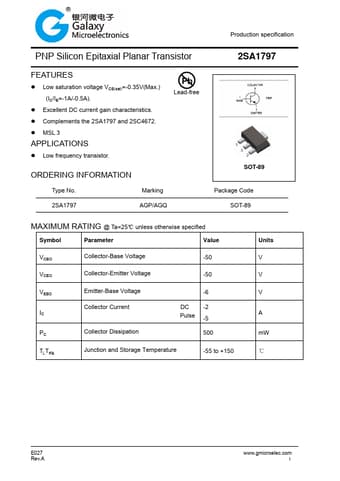

Preview of 2SA1797 PDF
