G2K2P10S2, G2K2P10S2E - Dual P-Channel Enhancement Mode Power MOSFET

📥 Download Datasheet

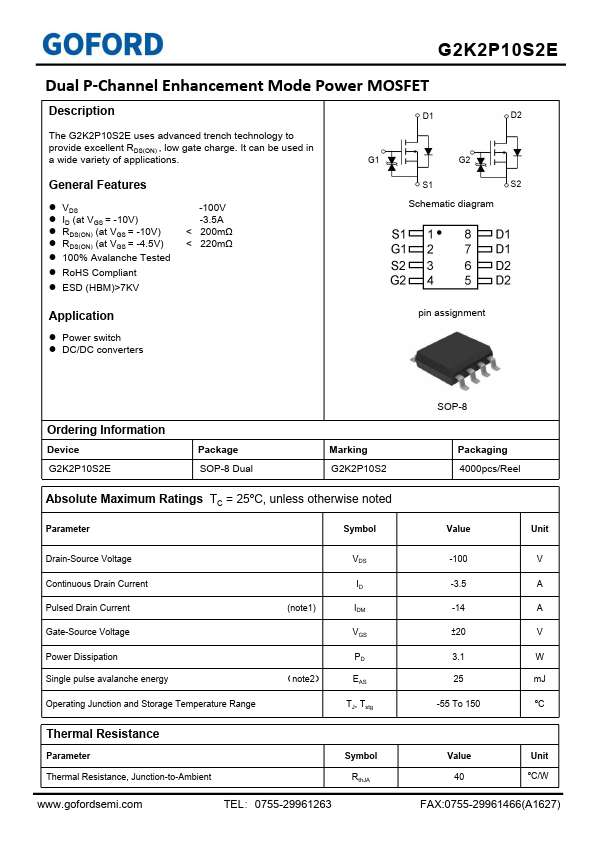

G2K2P10S2 Datasheet Preview — This datasheet PDF includes multiple part numbers: G2K2P10S2, G2K2P10S2E. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

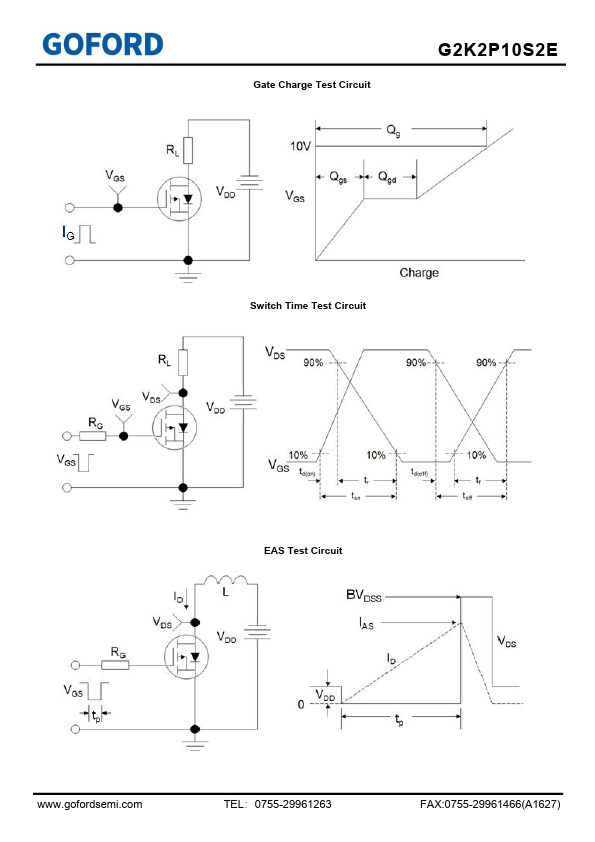

datasheet Preview Page 3

Datasheet Details

Part number	G2K2P10S2, G2K2P10S2E
Manufacturer	GOFORD
File Size	589.66 KB
Description	Dual P-Channel Enhancement Mode Power MOSFET
Datasheet	G2K2P10S2E-GOFORD.pdf
Note	This datasheet PDF includes multiple part numbers: G2K2P10S2, G2K2P10S2E. Please refer to the document for exact specifications by model.

G2K2P10S2 Product details

Description

D1 D2 The G2K2P10S2E uses advanced trench technology to provide excellent RDS(ON) , low gate charge.It can be used in a wide variety of applications.G1 G2 General

Features

l VDS l ID (at VGS = -10V) l RDS(ON) (at VGS = -10V) l RDS(ON) (at VGS = -4.5V) l 100% Avalanche Tested l RoHS Compliant l ESD (HBM)>7KV -100V -3.5A < 200mΩ < 220mΩ S1 S2 Schematic diagram.
