BR31, BR31_GOOD, SINGLE-PHASE SILICON BRIDGE

BR305 THRU BR310 SINGLE-PHASE SILICON BRIDGE Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Amperes .

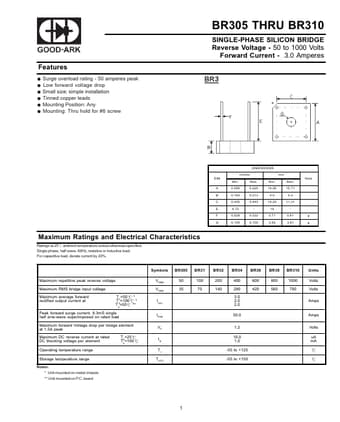

datasheet Preview Page 1 from Datasheet4u.com

BR31_GOOD-ARKElectronics.pdf

BR31 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR31, BR31_GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BR31, BR31_GOOD

Manufacturer:

GOOD-ARK Electronics

File Size:

45.65 KB

Description:

SINGLE-PHASE SILICON BRIDGE

Note:

This datasheet PDF includes multiple part numbers: BR31, BR31_GOOD.
Please refer to the document for exact specifications by model.

Features

* Surge overload rating - 50 amperes peak Low forward voltage drop Small size; simple installation Tinned copper leads Mounting Position: Any Mounting: Thru hold for #6 screw DIM ENSIONS DIM A B C E F G inches Min. 0.580 0.193 0.405 0.75 0.028 0.140 Max. 0.620 0.213 0.445 0.032 0.150 Min. 14.96 4.9 1
