BR310, BR310_GOOD Datasheet - GOOD-ARK Electronics

BR310 - SINGLE-PHASE SILICON BRIDGE

BR310 Features

* Surge overload rating - 50 amperes peak Low forward voltage drop Small size; simple installation Tinned copper leads Mounting Position: Any Mounting: Thru hold for #6 screw DIM ENSIONS DIM A B C E F G inches Min. 0.580 0.193 0.405 0.75 0.028 0.140 Max. 0.620 0.213 0.445 0.032 0.150 Min. 14.96 4.9 1

BR310_GOOD-ARKElectronics.pdf

This datasheet PDF includes multiple part numbers: BR310, BR310_GOOD. Please refer to the document for exact specifications by model.

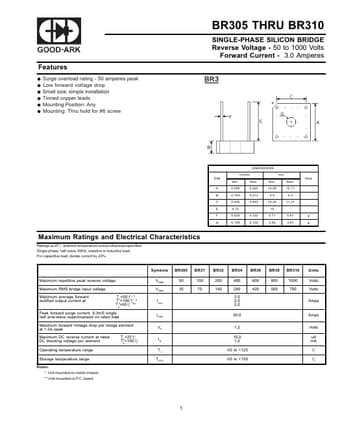

BR310 Datasheet Preview Page 2

Datasheet Details

Part number:

BR310, BR310_GOOD

Manufacturer:

GOOD-ARK Electronics

File Size:

45.65 KB

Description:

Single-phase silicon bridge.

Note:

This datasheet PDF includes multiple part numbers: BR310, BR310_GOOD.
Please refer to the document for exact specifications by model.
