GS81314LT37GK 144Mb SigmaDDR-IVe Burst of 2 Single-Bank ECCRAM

Symbol Description SA[21:0] DQ[35:0] QVLD[1:0] CK, CK KD[1:0], KD[1:0] CQ[1:0], CQ[1:0] LD R/W MRW PLL RST ZQ ZT RCS MZT[1:0] Address * Read or write address is registered on CK. Write/Read Data * Registered on KD and KD during Write operations; aligned with CQ and CQ during.

GS81314LT37GK Features

* 4Mb x 36 and 8Mb x 18 organizations available

* Organized as a single logical memory bank

* 933 MHz maximum operating frequency

* 933 MT/s peak transaction rate (in millions per second)

* 67 Gb/s peak data bandwidth (in x36 devices)

* Common I/O DDR

GS81314LT37GK Datasheet (282.02 KB)

Preview of GS81314LT37GK PDF

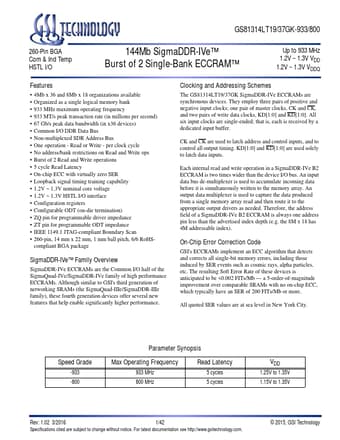

GS81314LT37GK Datasheet Preview Page 2 GS81314LT37GK Datasheet Preview Page 3
