TBL300N10D - N-Channel Enhancement MOSFET

Datasheet Summary

Features

  • N-Channel Enhancement MOSFET TBL300N10D.
  • Fast switching.
  • Low gate charge and RDS(ON).
  • Low reverse transfer capacitance.
  • Halogen free.
  • Qualified to AEC-Q101 standards for high reliability Typical.

📥 Download Datasheet

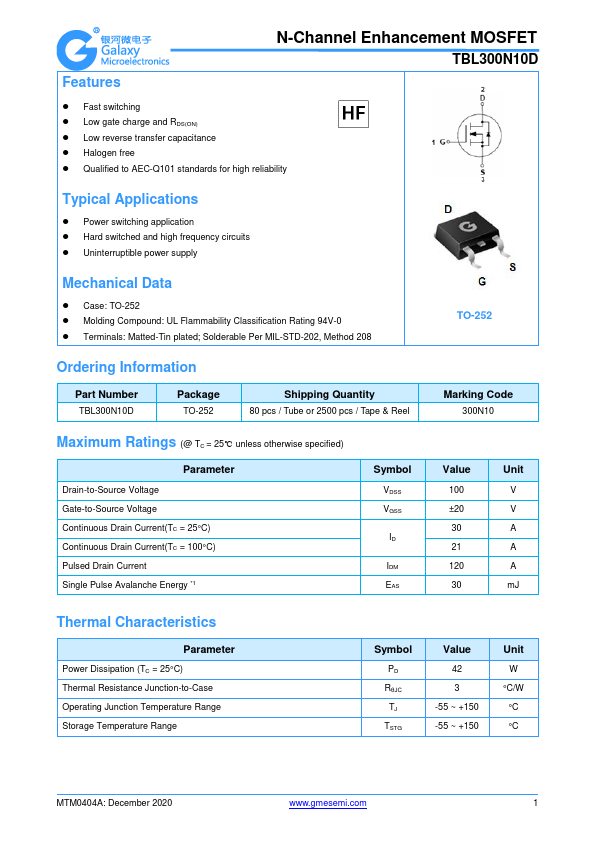

Datasheet preview – TBL300N10D

Datasheet Details

Part number TBL300N10D
Manufacturer Galaxy Microelectronics
File Size 494.59 KB
Description N-Channel Enhancement MOSFET
Datasheet download datasheet TBL300N10D Datasheet

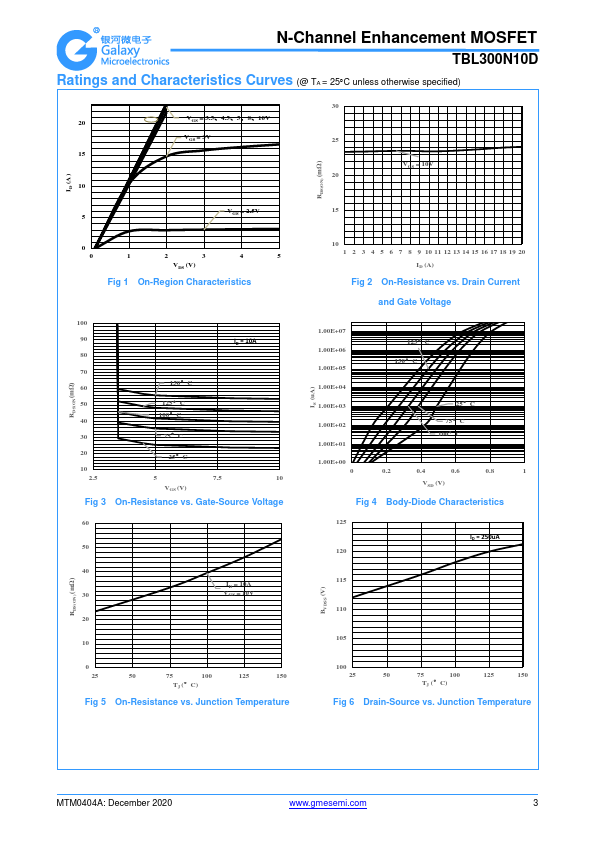

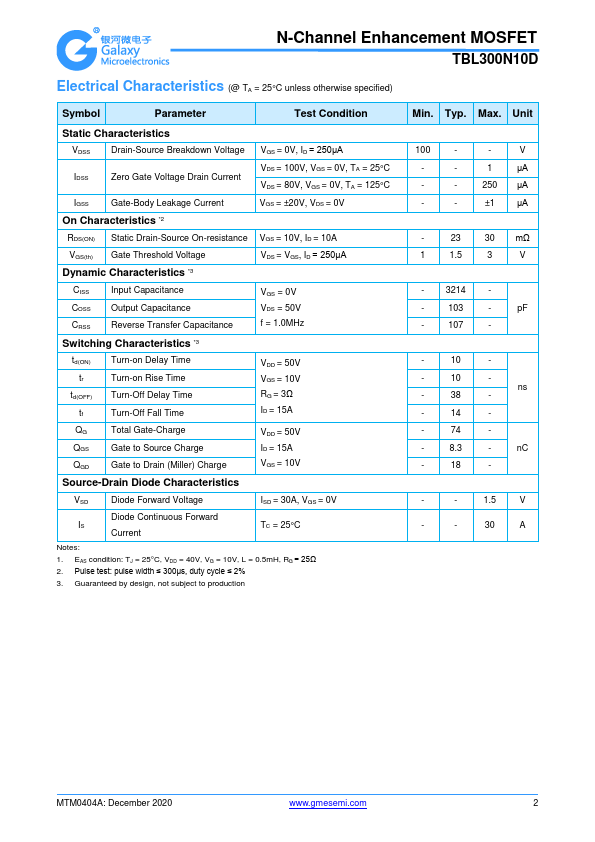

Additional preview pages of the TBL300N10D datasheet.

📁 Similar Datasheet

  • TBL3407 - P-Channel Enhancement Mode MOSFET (GME)
  • TBL3407-3L - P-Channel Enhancement Mode MOSFET (GME)
  • TBL005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL01 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL014N04T-5DL8 - N-Channel Enhancement Mode MOSFET (GME)
  • TBL02 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL03N06KC - N-Channel Enhancement Mode MOSFET (GME)
  • TBL04 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL050N10T-5DL8 - N-Channel Enhancement Mode MOSFET (GME)
  • TBL06 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
Other Datasheets by Galaxy Microelectronics

Full PDF Text Transcription

Click to expand full text
Features N-Channel Enhancement MOSFET TBL300N10D  Fast switching  Low gate charge and RDS(ON)  Low reverse transfer capacitance  Halogen free  Qualified to AEC-Q101 standards for high reliability Typical Applications  Power switching application  Hard switched and high frequency circuits  Uninterruptible power supply Mechanical Data  Case: TO-252  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matted-Tin plated; Solderable Per MIL-STD-202, Method 208 TO-252 Ordering Information Part Number TBL300N10D Package TO-252 Shipping Quantity 80 pcs / Tube or 2500 pcs / Tape & Reel Marking Code 300N10 Maximum Ratings (@ TC = 25℃ unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current(TC = 25°C) Con
