ZTP-101T - Thermopile IR Sensor

General Electric

📥 Download Datasheet

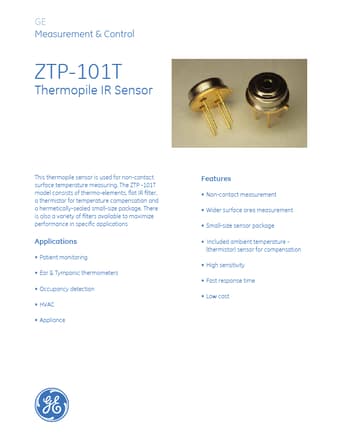

ZTP-101T Datasheet Preview — Preview of ZTP-101T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZTP-101T
Manufacturer	General Electric
File Size	158.63 KB
Description	Thermopile IR Sensor
Datasheet	ZTP-101T-GeneralElectric.pdf

ZTP-101T Product details

Features

Non-contact measurement.
Wider surface area measurement.
Small-size sensor package.
Included ambient temperature - (thermistor) sensor for compensation.
High sensitivity.
Fast response time.
Low cost Specifications Thermopile Chip Parameter Limits Min Typ Max Units Condition Chip Size 3.0 X 3.0 mm2 Diaphragm Size Active Area 1.5 x 1.5 0.51 x 0.51 mm2 mm2 Internal Resistance 140 200 260 kW 25°C Resistance T. C Res.
