ZTP7108

Synchronous Step-Down Converter

ZTP7108 Features

* 2A output current Current mode operation High efficiency up to 95% Shutdown current < 1µA 2.5V to 5.5V supply voltage Over temperature protection Constant frequency operation Full duty ratio, 0

* 100% in dropout RoHS Compliant and Lead (Pb) Free APPLICATIONS Cellular phones PDAs and smart ph

ZTP7108 General Description

ZTP7108 is a high efficiency step down DC/DC converter operated with current mode and constant frequency. The internal switch and synchronous rectifier are integrated for high efficiency. External Schottky diodes are not required. The supply current is only 120µA during operation and drops to less t.

ZTP7108 Datasheet (628.22 KB)

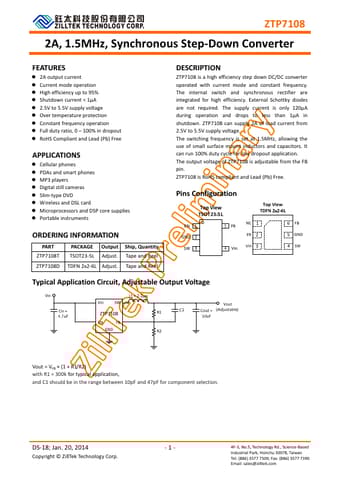

Preview of ZTP7108 PDF

Datasheet Details

Part number:

ZTP7108

Manufacturer:

ZillTek

File Size:

628.22 KB

Description:

Synchronous step-down converter.
