ZTP-315 - Thermometrics Thermopile IR Sensor

General Electric

📥 Download Datasheet

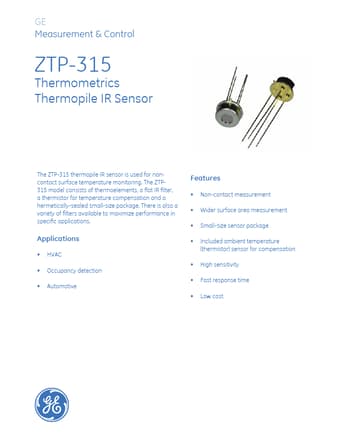

ZTP-315 Datasheet Preview — Preview of ZTP-315 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZTP-315
Manufacturer	General Electric
File Size	183.83 KB
Description	Thermometrics Thermopile IR Sensor
Datasheet	ZTP-315-GeneralElectric.pdf

ZTP-315 Product details

Features

Non-contact measurement.
Wider surface area measurement.
Small-size sensor package.
Included ambient temperature (thermistor) sensor for compensation.
High sensitivity.
Fast response time.
Low cost Thermopile Chip Parameter Chip Size Diaphragm Size Active Area Internal Resistance Resistance T. C. Responsivity Responsivity T. C. Noise Voltage NEP Detectivity Time Constant Min 35 22 Limits Typ 3.6 x 3.6 2.6 x 2.6 1.3 x 1.3 50.
