ZTP-115M - Thermopile IR Module

General Electric

📥 Download Datasheet

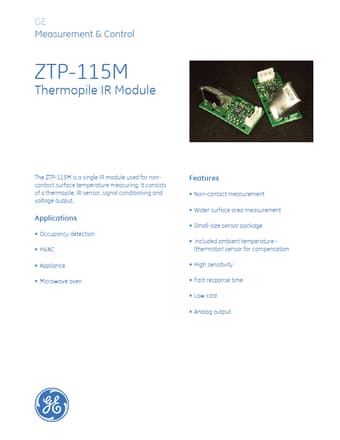

ZTP-115M Datasheet Preview — Preview of ZTP-115M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZTP-115M
Manufacturer	General Electric
File Size	420.64 KB
Description	Thermopile IR Module
Datasheet	ZTP-115M-GeneralElectric.pdf

ZTP-115M Product details

Features

Non-contact measurement.
Wider surface area measurement.
Small-size sensor package.
Included ambient temperature - (thermistor) sensor for compensation.
High sensitivity.
Fast response time.
Low cost.
Analog output Output(V) Normalized Output Specifications Supply Voltage Single Supply (+5V) Supply Current Typical 2.7 mA Response Time 0.3 ~ 0.6 second Range of Measuring Temperature -40°C ~ 145°C Operating Temperat.
