ZTP7193KT

Synchronous Step-Down DC/DC Converter

ZTP7193KT Features

* 4.5V to 18V input voltage

* Output adjustable from 0.765V to 15V

* Output current up to 3A

* Integrated 85mΩ/45mΩ power MOSFET switches

* Shutdown current 3μA typical

* Efficiency up to 95%

* Fixed frequency 650KHz

* Internal soft start

* Over current protection

ZTP7193KT General Description

The ZTP7193KT is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current over a wide input supply range, with excellent load and line regulation. The ZTP7193KT has synchronous-.

ZTP7193KT Datasheet (699.85 KB)

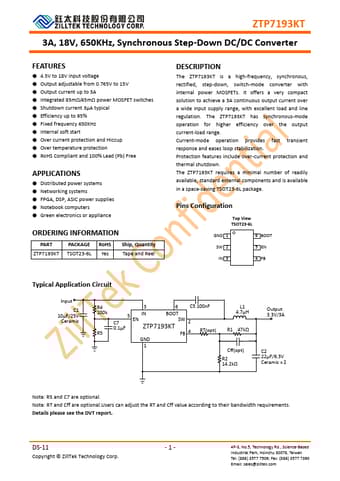

Preview of ZTP7193KT PDF

Datasheet Details

Part number:

ZTP7193KT

Manufacturer:

ZillTek

File Size:

699.85 KB

Description:

Synchronous step-down dc/dc converter.
