G1084-15TU3U

5A Low-Dropout Linear Regulator

G1084-15TU3U Features

* Available in 1.5V, 1.8V, 2.5V, 3.3V version

* TO-252,TO-263 and TO-263T package

* Internal short circuit current limiting

* Internal over temperature protection

* Output current 5A Applications

* Post regulation for switching DC/DC converter

G1084-15TU3U General Description

The G1084-XX is a low dropout linear regulator with a dropout of 1.3V at 5A of load current. It is available in three fixed voltages: 1.5V, 1.8V, 2.5V and 3.3V. Refer to the G1084 for the adjustable version. The G1084-XX provides over temperature and over current protection circuits to prevent it fr.

G1084-15TU3U Datasheet (337.84 KB)

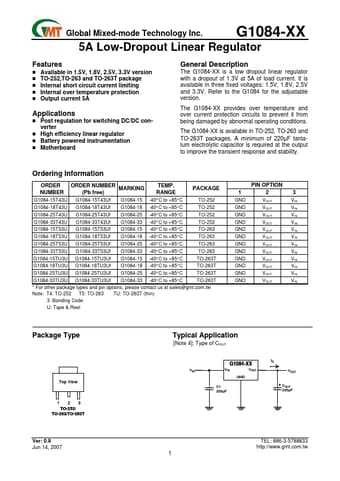

Preview of G1084-15TU3U PDF

Datasheet Details

Part number:

G1084-15TU3U

Manufacturer:

Global Mixed-mode Technology

File Size:

337.84 KB

Description:

5a low-dropout linear regulator.
