G1000QC250 - Anode Shorted Gate Turn-Off Thyristor

IXYS

Datasheet Details

Part number	G1000QC250
Manufacturer	IXYS
File Size	137.66 KB
Description	Anode Shorted Gate Turn-Off Thyristor
Datasheet	G1000QC250 Datasheet
Additional preview pages of the G1000QC250 datasheet.

📁 Similar Datasheet

G1002 - N-Channel Enhancement Mode Power MOSFET (GOFORD)
G1003A - N-Channel Enhancement Mode Power MOSFET (GFD)
G1003B - N-Channel MOSFET (GOFORD)
G1005 - MOSFET (GOFORD)
G1006A - N-Channel MOSFET (GOFORD)
G1007 - MOSFET (GFD)
G100N03 - N-Channel Enhancement Mode Power MOSFET (GOFORD)
G100N03D5 - N-Channel Enhancement Mode Power MOSFET (GOFORD)
G101EAN01.0 - WXGA 16:10 Color TFT-LCD (AUO)
G101EAN02.101 - Color TFT-LCD (AUO)

Other Datasheets by IXYS

G1000QC400 - Anode Shorted Gate Turn-Off Thyristor
G1000QC450 - Anode Shorted Gate Turn-Off Thyristor
G1000LL250 - Anode-Shorted Gate Turn-Off Thyristor
G1000LM250 - Anode-Shorted Gate Turn-Off Thyristor
G1000NC450 - Anode Shorted Gate Turn-Off Thyristor
G1000NL450 - Anode Shorted Gate Turn-Off Thyristor

Full PDF Text Transcription

Click to expand full text

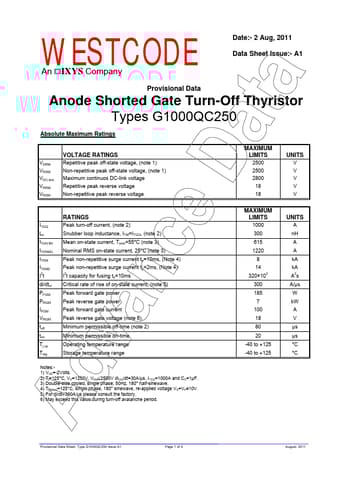

WESTCODE An IXYS Company Date:- 2 Aug, 2011 Data Sheet Issue:- A1 Provisional Data Anode Shorted Gate Turn-Off Thyristor Types G1000QC250 Absolute Maximum Ratings VDRM VRSM VDC-link VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Maximum continuos DC-link voltage Repetitive peak reverse voltage Non-repetitive peak reverse voltage MAXIMUM LIMITS 2500 2500 2800 18 18 UNITS V V V V V ITGQ Ls IT(AV)M IT(RMS) ITSM ITSM2 I2t di/dtcr PFGM PRGM IFGM VRGM toff ton Tj op Tstg RATINGS Peak turn-off current, (note 2) Snubber loop inductance, ITM=ITGQ, (note 2) Mean on-state current, Tsink=55°C (note 3) Nominal RMS on-state current, 25°C (note 3) Peak non-repetitive surge current tp=10ms, (Note 4) Peak non-repetitive surge c
