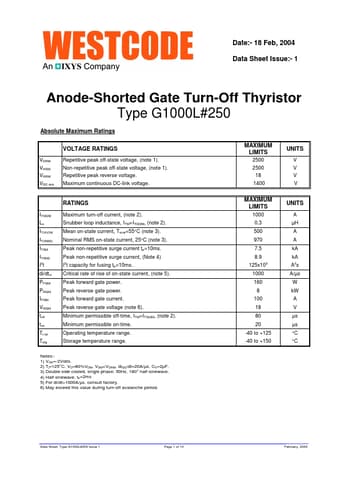

Date:- 18 Feb, 2004 Data Sheet Issue:- 1 Anode-Shorted Gate Turn-Off Thyristor Type G1000L#250 Absolute Maximum Ratings VDRM VRSM VRRM VDC-link VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1). Non-repetitive peak off-state voltage, (note 1). Repetitive peak reverse voltage. Maximum continuous DC-link voltage. MAXIMUM LIMITS 2500 2500 18 1400 UNITS V V V V ITGQM Ls IT(AV)M IT(RMS) ITSM ITSM2 I2t di/dtcr PFGM PRGM IFGM VRGM toff ton Tj op Tstg RATINGS Maximum turn-off current, (note 2). Snubber loop inductance, ITM=ITGQM, (note 2). Mean on-state current, Tsink=55°C (note 3). Nominal RMS on-state current, 25°C (note 3). Peak non-repetitive surge current tp=10ms. Peak non-repetitive surge current, (Note 4) I2t capacity for fusing tp=10ms.
