G2010 - 1-Channel DC Motor Driver

G2010 Description

Global Mixed-mode Technology G2010 1-Channel DC Motor Driver for Toy .
The G2010 is a 1-channel H-bridge driver IC for DC motor application.

G2010 Features

* 1-Channel H-bridge driver built-in power PMOS and NMOS.
* The driver with forward, reverse, stop and brake function.
* Low stand-by and operating current.
* Low on-resistance. (1Ω)
* Low voltage operation.
* Built-in thermal shutdown function.

G2010 Applications

* Toy Motor Driver Ordering Information ORDER NUMBER G2010P11U G2010Z31U Note: P1: SOP-8 Z3: DIP-8 1: Bonding Code U: Tube & Reel Pin Configuration MARKING G2010 G2010 TEMP. RANGE -20°C to +85°C -20°C to +85°C PACKAGE (Green) SOP-8 DIP-8 Typical Application Circuit INB 1 AGND 2 PGND 3

📥 Download Datasheet

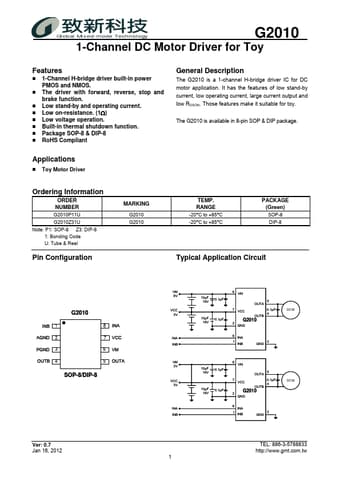

Preview of G2010 PDF
