G2002 - 5+1CH serial input motor driver

G2002 Description

Global Mixed-mode Technology G2002/G2002B 5+1CH serial input motor driver IC for DSC .
G2002/G2002B is a 5+1-channel H-Bridge motor drivers IC for the digital camera and.

G2002 Features

* Build-in one micro-steps drive mode is possible from 2-2 phase stepper drive to maximum 256 resolution micro-steps.
* Built in 2 full-swing/constant voltage drivers switched by serial control with brake function
* Built in 1 constant current drivers for shutter or IRIS

📥 Download Datasheet

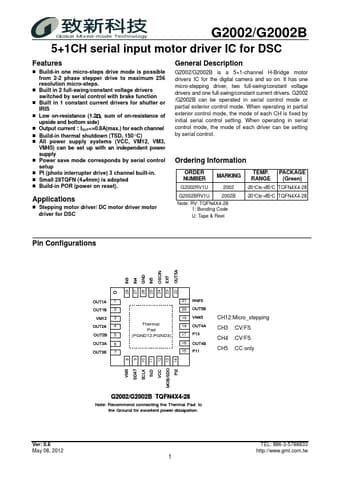

Preview of G2002 PDF

Datasheet Details

Part number
G2002
Manufacturer
Global Mixed-mode Technology
File Size
54.07 KB
Datasheet
G2002-GlobalMixedmodeTechnology.pdf
Description
5+1CH serial input motor driver
