G2004

Constant current type 1-CH H-bridge driver IC

G2004 Features

* Low voltage operation (VDD min=2.5V)

* Low saturation voltage (sum of upside transistor and bottom side transistor is 0.3V at 200mA)

* Low input current.

* Low current consumption (sleep mode with zero current drain when EN is low.)

* Build-in thermal shutdo

G2004 General Description

G2004 is a constant current type 1-CH H-bridge driver IC with small package (SOT-23-8 or TDFN 2X2-8). It is one channel constant current (200mA) with H-bridge motor driver IC. It is suitable for camera module application for DSC and Mobile phone. Ordering Information ORDER NUMBER G2004TM1U MARKIN.

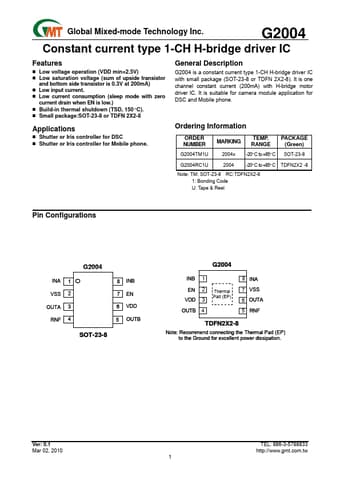

G2004 Datasheet (56.04 KB)

Preview of G2004 PDF

Datasheet Details

Part number:

G2004

Manufacturer:

Global Mixed-mode Technology

File Size:

56.04 KB

Description:

Constant current type 1-ch h-bridge driver ic.
