G2006 Datasheet, Driver, Global Mixed-mode Technology

G2006 Features

  • Driver
  • Low voltage operation (VDD min=1.8V)
  • Low saturation voltage (sum of upside transistor and bottom side transistor is 0.46V at 400mA)
  • Low input current.

PDF File Details

Part number:

G2006

Manufacturer:

Global Mixed-mode Technology

File Size:

33.78kb

Download:

📄 Datasheet

Description:

Low-voltage 1 channels bi-directional motor driver. G2006 is a micro-actuator drivers IC with miniature package (WDFN-6). It is one channel low voltage bi-directional motor driver IC. T

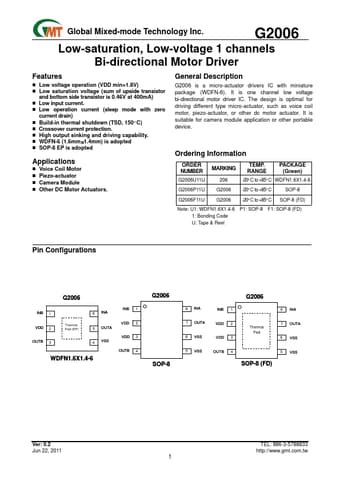

Datasheet Preview: G2006 📥 Download PDF (33.78kb)

G2006 Application

  • Applications
  • Voice Coil Motor
  • Piezo-actuator
  • Camera Module
  • Other DC Motor Actuators. General Description G2

TAGS

G2006
Low-voltage
channels
Bi-directional
Motor
Driver
Global Mixed-mode Technology
