G2003

10-bit I2C DAC

G2003 Features

* 120mA current sink.

* 2-wire (I2C-compatible) serial interface

* 10-bit resolution

* Integrated current sense resistor

* 2.3V to 5.0V power supply

* Power-down mode

* Power-down to 0.5μA typical

* Power-on reset

* TDFN2X2-6 an

G2003 General Description

The G2003 is a single 10-bit DAC with 120mA output current sink capability. It operates from 2.3V to 5.0V supply. The DAC is controlled via 2-wire (I2C-compatible) serial interface that operates at clock rates up to 400kHz. The G2003 provides a power-down mode. The power-down mode can be enabled by .

G2003 Datasheet (127.62 KB)

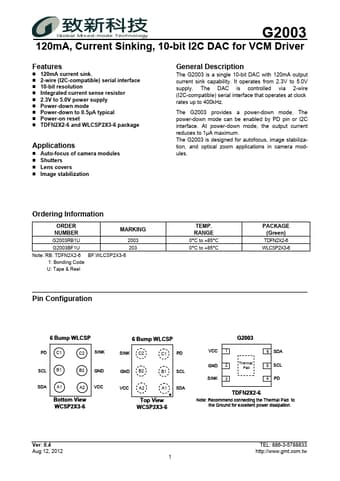

Preview of G2003 PDF

Datasheet Details

Part number:

G2003

Manufacturer:

Global Mixed-mode Technology

File Size:

127.62 KB

Description:

10-bit i2c dac.
