G2000HF250 - Anode Shorted Gate Turn-Off Thyristor

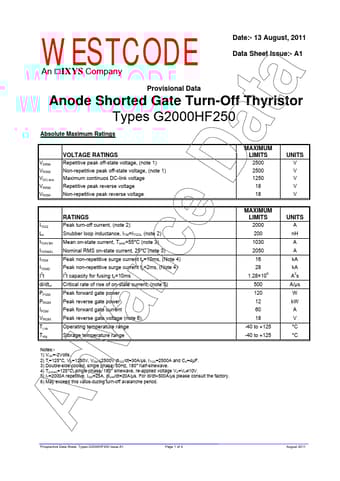

WESTCODE An IXYS Company Date:- 13 August, 2011 Data Sheet Issue:- A1 Provisional Data Anode Shorted Gate Turn-Off Thyristor Types G2000HF250 Absolute Maximum Ratings VDRM VRSM VDC-link VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Maximum continuos DC-link voltage Repetitive peak reverse voltage Non-repetitive peak reverse voltage MAXIMUM LIMITS 2500 2500 1250 18 18 UNITS V V V V V ITGQ Ls IT(AV)M IT(RMS) ITSM ITSM2
