G2011 - 2-Channel DC Motor Driver

G2011 Description

Global Mixed-mode Technology G2011 2-Channel DC Motor Driver for Toy .
The G2011 is a 2-channel H-bridge drivers IC for DC motor application.

G2011 Applications

* Toy Motor Driver Ordering Information ORDER NUMBER G2011P31U G2011Z41U Note: P3: SOP-16 Z4: DIP-16 1: Bonding Code U: Tube & Reel MARKING G2011 G2011 Pin Configuration VM1 PGND1 OUT1B OUT1A IN2A VCC IN2B AGND 1 2 3 4 5 6 7 8 G2011 SOP-16 16 AGND 15 IN1B 14 VCC 13 IN1A 12 OUT2A 11 OUT2B 10 PGN

📥 Download Datasheet

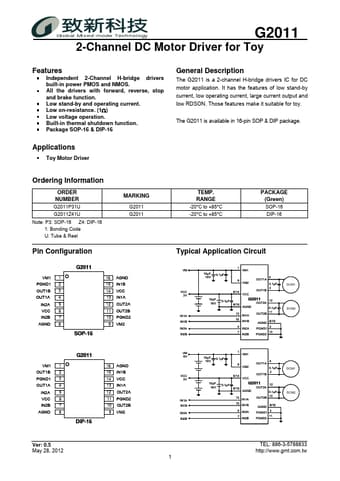

Preview of G2011 PDF

Datasheet Details

Part number
G2011
Manufacturer
Global Mixed-mode Technology
File Size
72.63 KB
Datasheet
G2011-GlobalMixedmodeTechnology.pdf
Description
2-Channel DC Motor Driver
