G5180 - Switching Regulator Power Controller

Global Mixed-mode Technology

The G5180 by Global Mixed-mode Technology is a Switching Regulator Power Controller. Below is the official datasheet preview.

📥 Download Datasheet

G5180 Switching Regulator Power Controller by Global Mixed-mode Technology - Datasheet Preview — Official preview page of the **G5180** Switching Regulator Power Controller datasheet (Global Mixed-mode Technology).

Datasheet Details

Part number	G5180
Manufacturer	Global Mixed-mode Technology
File Size	97.45 KB
Description	Switching Regulator Power Controller
Datasheet	G5180-GlobalMixedmodeTechnology.pdf

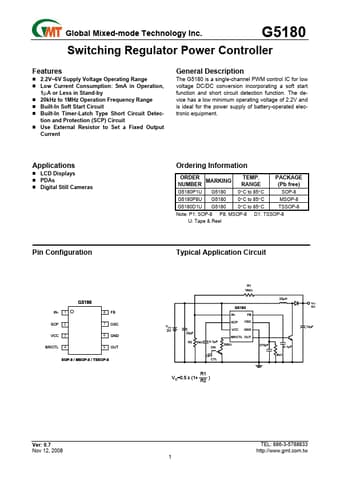

Additional preview pages of the G5180 datasheet.

G5180 Product details

Description

The G5180 is a single-channel PWM control IC for low voltage DC/DC conversion incorporating a soft start function and short circuit detection function. LCD Displays PDAs Digital Still Cameras Ordering Information ORDER NUMBER MARKING TEMP.RANGE PACKAGE (Pb free) G5180P1U G5180 0°C to 85°C SOP-8 G5180P8U G5180 0°C

Features

2.2V~6V Supply Voltage Operating Range.
Low Current Consumption: 5mA in Operation, 1µA or Less in Stand-by.
20kHz to 1MHz Operation Frequency Range.
Built-In Soft Start Circuit.
Built-In Timer-Latch Type Short Circuit Detec- tion and Protection (SCP) Circuit.
Use External Resistor to Set a Fixed Output Current General.
