GS2533, Low Dropout Voltage Linear Regulator

GS2533/50 High Input Voltage / Low Quiescent Current / Fixed 3.3/5V Low Dropout Voltage Linear Regulator Product .
The GS2533/50 is a High Input Voltage and Low Quiescent Current linear regulator with Fixed 3.

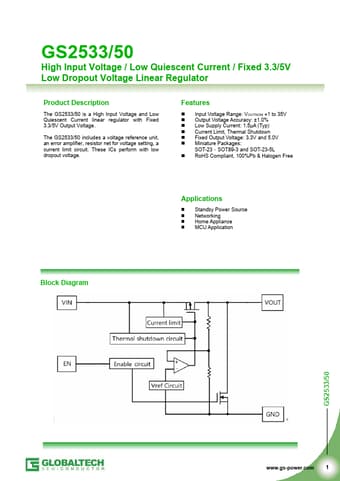

datasheet Preview Page 1 from Datasheet4u.com

GS2533-Globaltech.pdf

GS2533 Datasheet Preview — Preview of GS2533 PDF

Datasheet Details

Part number:

GS2533

Manufacturer:

Globaltech

File Size:

1.49 MB

Description:

Low Dropout Voltage Linear Regulator

Features

* Input Voltage Range: VOUTNOM +1 to 35V
* Output Voltage Accuracy: ±1.0%
* Low Supply Current: 1.5μA (Typ)
* Current Limit, Thermal Shutdown
* Fixed Output Voltage: 3.3V and 5.0V
* Miniature Packages: SOT-23、SOT89-3 and SOT-23-5L
* RoHS Compliant, 100%Pb & Halogen Free

Applications

* Standby Power Source
* Networking
* Home Appliance
* MCU Application Block Diagram GS2533/50 www. gs-power. com 1 Packages & Pin Assignments SOT-89 TAB 123 Pin Pin Name 1 GND 2 VIN 3 VOUT TAB VIN SOT-23-5LA SOT-23 Pin Pin Name 1 GND 2 VOUT 3 VIN SOT-23-5LB
