GS2576 - 52kHz 3A Step-Down Voltage Regulator

GS2576 Description

52kHz 3A Step-Down Voltage Regulator Product .
The GS2576 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down switching regulator, capable.

GS2576 Features

* include a guaranteed ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring 50µA (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as therm

GS2576 Applications

* Simple high-efficiency step-down regulator On-card switching regulators Positive to negative converter Efficient pre-regulator for linear regulators Block Diagram Unregulated DC Input +VIN 1 Internal Regulator ON / OFF 5 ON / OFF CIN FEEDBACK 4 R2 Fixd Gain Error Am

📥 Download Datasheet

Preview of GS2576 PDF

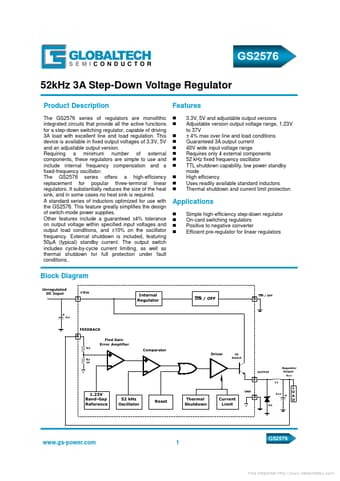

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2576
Manufacturer
Globaltech
File Size
641.39 KB
Datasheet
GS2576_Globaltech.pdf
Description
52kHz 3A Step-Down Voltage Regulator
