GS2615 - 150mA Low-Noise Ultra Low-Dropout Regulator

GS2615 Description

150mA Low-Noise Ultra Low-Dropout Regulator Product .
The GS2615 is a 150mA, fixed-output and adjustable voltage regulator designed to provide ultra low-dropout and low noise in battery powered applicatio.

GS2615 Features

* Ultra low dropout voltage
* Guaranteed 150mA output current
* Smallest possible size (SOT-23-5L, micro SMD package)
* Requires minimum external components
* Stable with low-ESR output capacitor

GS2615 Applications

* Using an optimized VIPTM(Vertically Integrated PNP) process, the GS2615 delivers unequalled performance in all specifications critical to battery-powered designs: Dropout Voltage: Typically 300mV @ 150mA load, and 7mV @ 1mA load. Ground Pin Current: Typically 850μA @ 150mA load, and 75μA @ 1mA load

📥 Download Datasheet

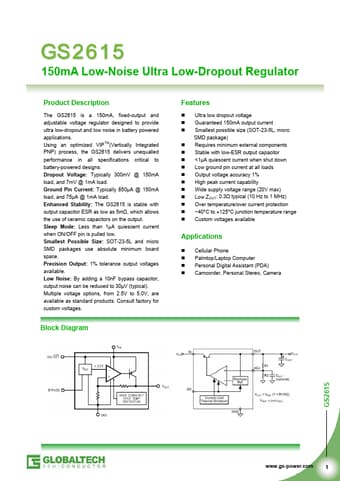

Preview of GS2615 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2615
Manufacturer
Globaltech
File Size
1.31 MB
Datasheet
GS2615-Globaltech.pdf
Description
150mA Low-Noise Ultra Low-Dropout Regulator
