GS2550, GS2533 - Low Dropout Voltage Linear Regulator

GS2550 Description

GS2533/50 High Input Voltage / Low Quiescent Current / Fixed 3.3/5V Low Dropout Voltage Linear Regulator Product .
The GS2533/50 is a High Input Voltage and Low Quiescent Current linear regulator with Fixed 3.

GS2550 Features

* Input Voltage Range: VOUTNOM +1 to 35V
* Output Voltage Accuracy: ±1.0%
* Low Supply Current: 1.5μA (Typ)
* Current Limit, Thermal Shutdown
* Fixed Output Voltage: 3.3V and 5.0V
* Miniature Packages: SOT-23、SOT89-3 and SOT-23-5L
* RoHS Compliant, 100%Pb & Halogen Free

GS2550 Applications

* Standby Power Source
* Networking
* Home Appliance
* MCU Application Block Diagram GS2533/50 www. gs-power. com 1 Packages & Pin Assignments SOT-89 TAB 123 Pin Pin Name 1 GND 2 VIN 3 VOUT TAB VIN SOT-23-5LA SOT-23 Pin Pin Name 1 GND 2 VOUT 3 VIN SOT-23-5LB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2550, GS2533. Please refer to the document for exact specifications by model.

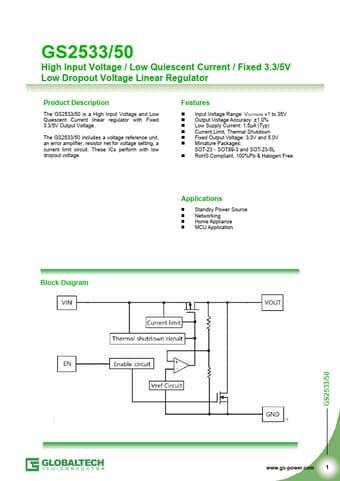

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2550, GS2533
Manufacturer
Globaltech
File Size
1.49 MB
Datasheet
GS2533-Globaltech.pdf
Description
Low Dropout Voltage Linear Regulator
Note
This datasheet PDF includes multiple part numbers: GS2550, GS2533.
Please refer to the document for exact specifications by model.
