GS7805LDF, GS7805L - 1A Positive Voltage Regulator

Globaltech

📥 Download Datasheet

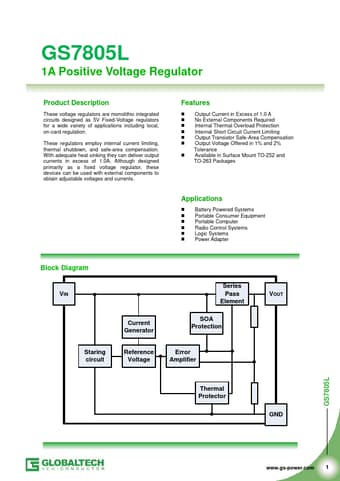

GS7805LDF Datasheet Preview — This datasheet PDF includes multiple part numbers: GS7805LDF, GS7805L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: GS7805LDF, GS7805L
Manufacturer: Globaltech
File Size: 837.06 KB
Datasheet: GS7805L-Globaltech.pdf
Description: 1A Positive Voltage Regulator
Note: This datasheet PDF includes multiple part numbers: GS7805LDF, GS7805L.
Please refer to the document for exact specifications by model.

GS7805LDF Product details

Description

These voltage regulators are monolithic integrated circuits designed as 5V Fixed-Voltage regulators for a wide variety of applications including local, on-card regulation.

Features

Output Current in Excess of 1.0 A.
No External Components Required.
Internal Thermal Overload Protection.
Internal Short Circuit Current Limiting.
Output Transistor Safe-Area Compensation.
Output Voltage Offered in 1% and 2% Tolerance.
Available in Surface Mount TO-252 and TO-263 Packages.
