GS7805LMF

1A Positive Voltage Regulator

GS7805LMF Features

* Output Current in Excess of 1.0 A

* No External Components Required

* Internal Thermal Overload Protection

* Internal Short Circuit Current Limiting

* Output Transistor Safe-Area Compensation

* Output Voltage Offered in 1% and 2% Tolerance

* Available in Surface Mount T

GS7805LMF General Description

These voltage regulators are monolithic integrated circuits designed as 5V Fixed-Voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heat sinking they.

GS7805LMF Datasheet (837.06 KB)

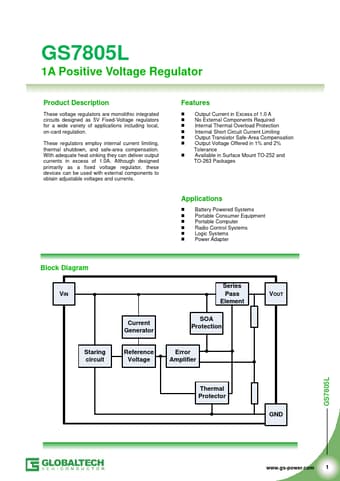

Preview of GS7805LMF PDF

Datasheet Details

Part number:

GS7805LMF

Manufacturer:

Globaltech

File Size:

837.06 KB

Description:

1a positive voltage regulator.
