GS7808DF

1A Positive Voltage Regulator

GS7808DF Features

* Output Current in Excess of 1.0 A No External Components Required Internal Thermal Overload Protection Internal Short Circuit Current Limiting Output Transistor Safe-Area Compensation Output Voltage Offered in 1% and 2%

GS7808DF General Description

These voltage regulators are monolithic integrated circuits designed as Fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heat sinking they ca.

GS7808DF Datasheet (249.16 KB)

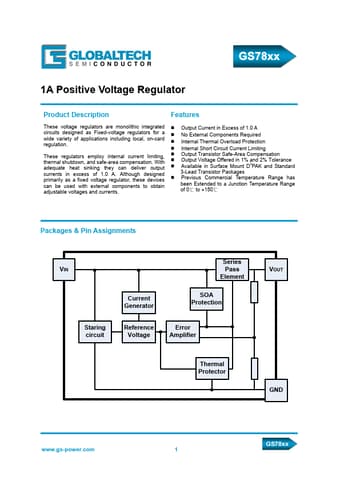

Preview of GS7808DF PDF

Datasheet Details

Part number:

GS7808DF

Manufacturer:

Globaltech

File Size:

249.16 KB

Description:

1a positive voltage regulator.
